Reverse Osmosis Systems Desalination Seawater Brackish Skid-Mounted

Brackish & Seawater Reverse Osmosis System

Skid-mounted RO desalination for brackish and seawater, treating up to 1,900 m³/day standard and 10,000 m³/day modular.

SKU: BW-SW-RO

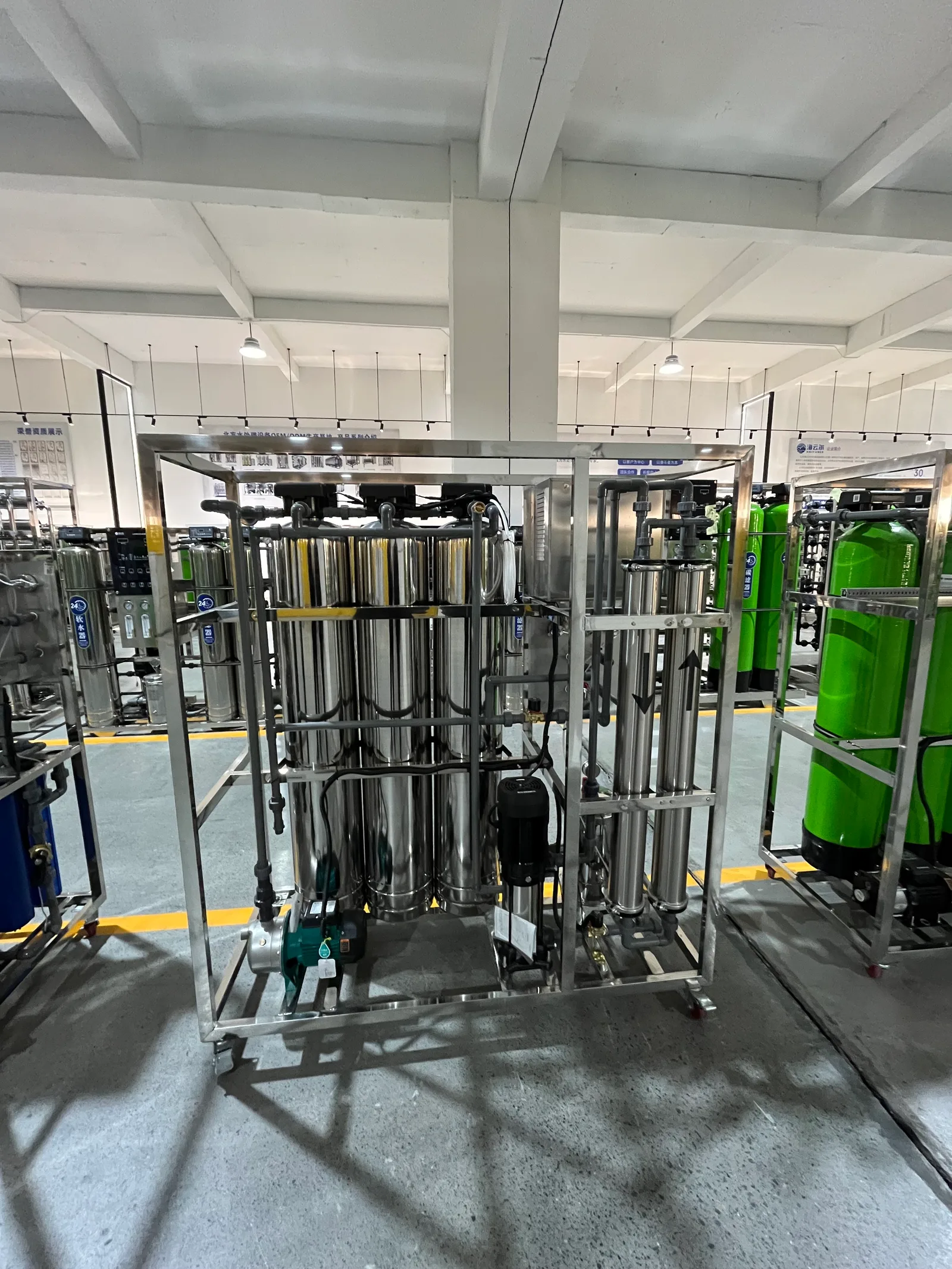

Brackish & Seawater Reverse Osmosis System — view 1

Configure Your Spec

Select the operating configuration for a tailored quotation.

Capacity

Frame Material

Energy Recovery

Current Spec Summary

Capacity
50 m³/day
Frame Material
304 SS
Energy Recovery
None
WhatsApp

Key operating data

Capacity
5 – 1,900 m³/day (standard); up to 10,000 m³/day (modular)
Salt Rejection
≥ 99.2%
Operating Pressure
Up to 80 bar (seawater) / 30 bar (brackish)
Recovery Rate
35 – 55%

Technical Specifications

Feed WaterBrackish or seawater (TDS up to 45,000 ppm)
Capacity5 – 1,900 m³/day (standard); up to 10,000 m³/day (modular)
Salt Rejection≥ 99.2%
Operating PressureUp to 80 bar (seawater) / 30 bar (brackish)
Recovery Rate35 – 55%
Frame316L stainless steel skid, corrosion resistant
Energy RecoveryOptional ERD, up to 30% energy saving
ControlPLC + HMI dashboard, remote ready

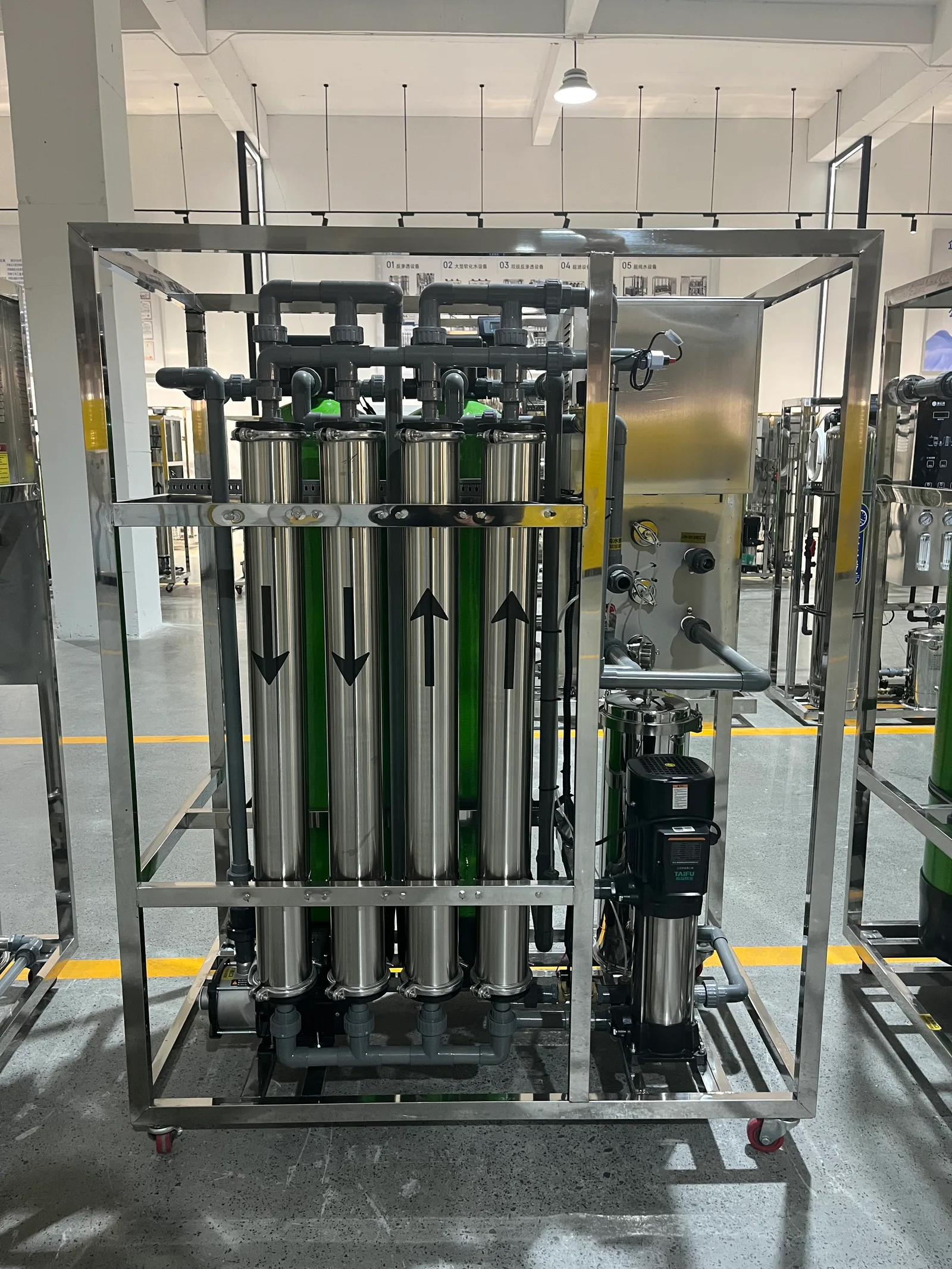

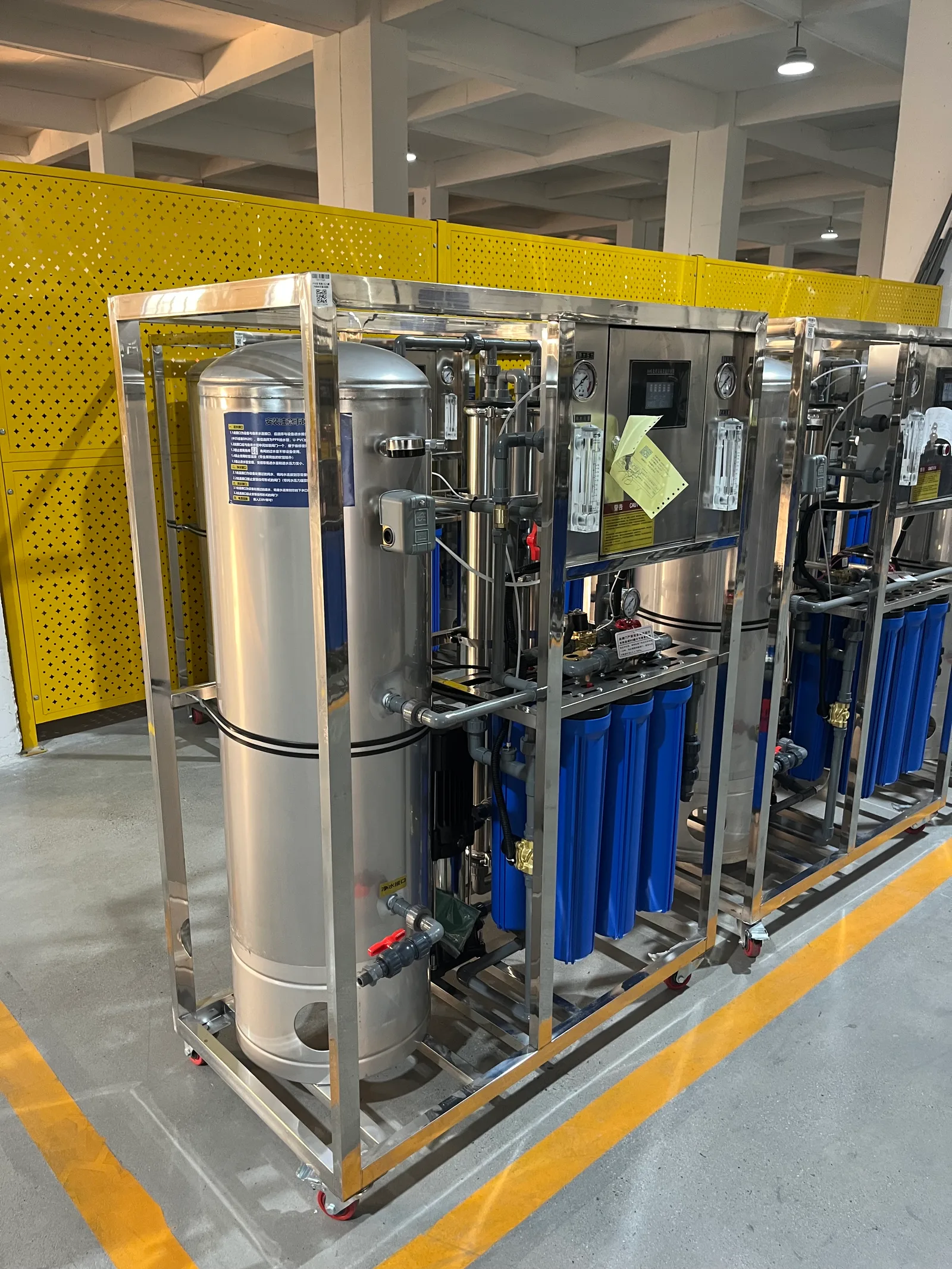

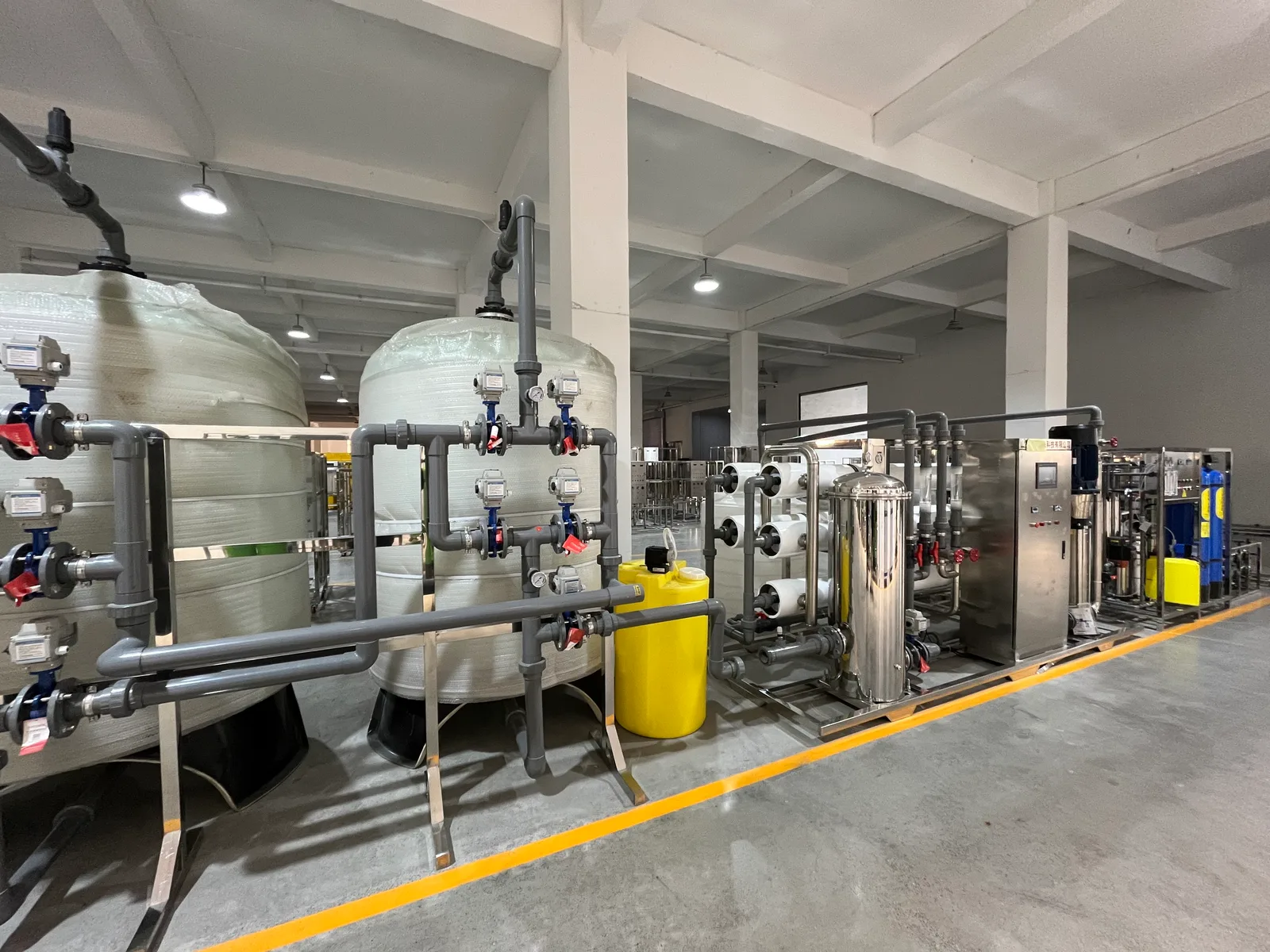

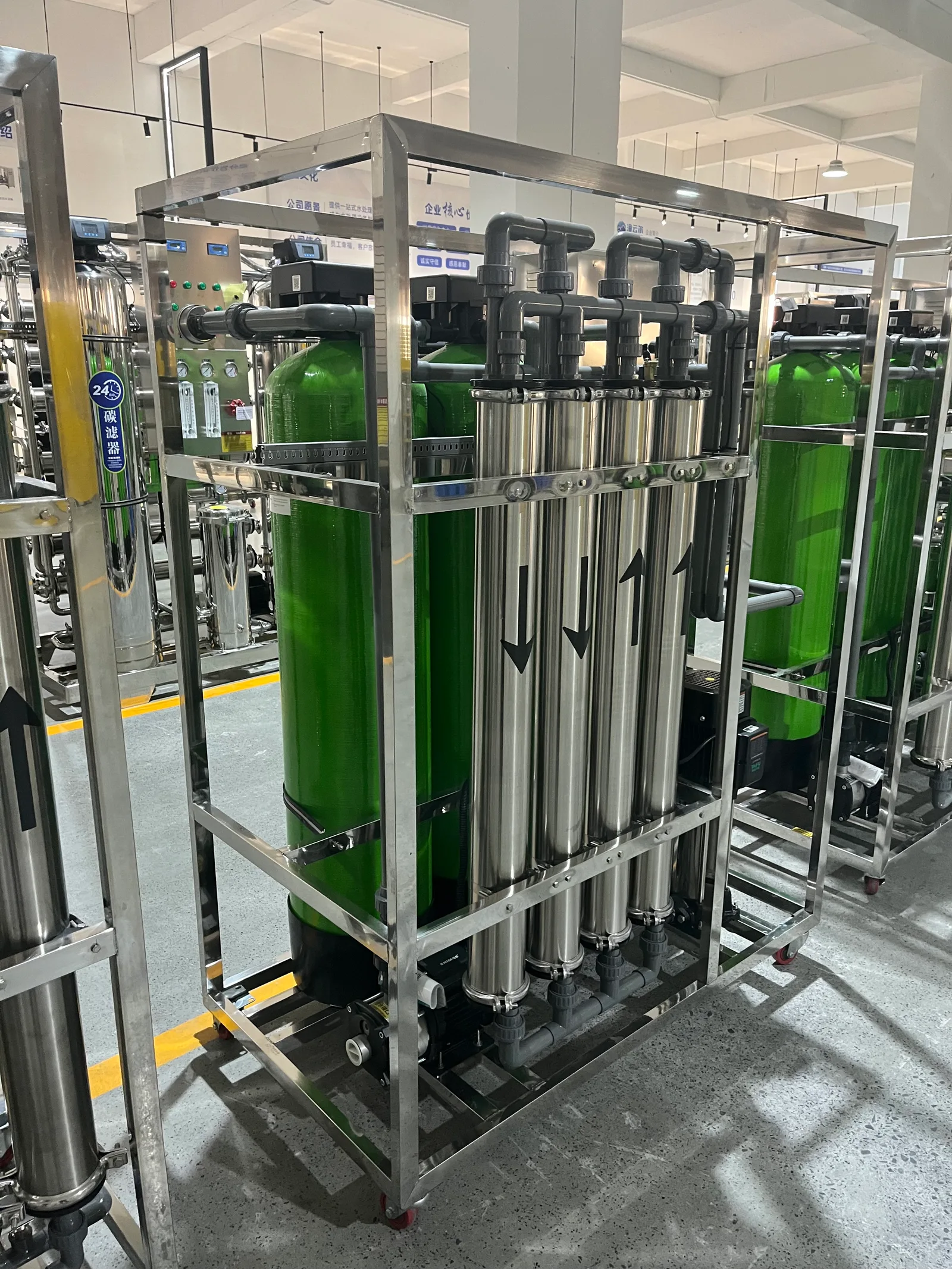

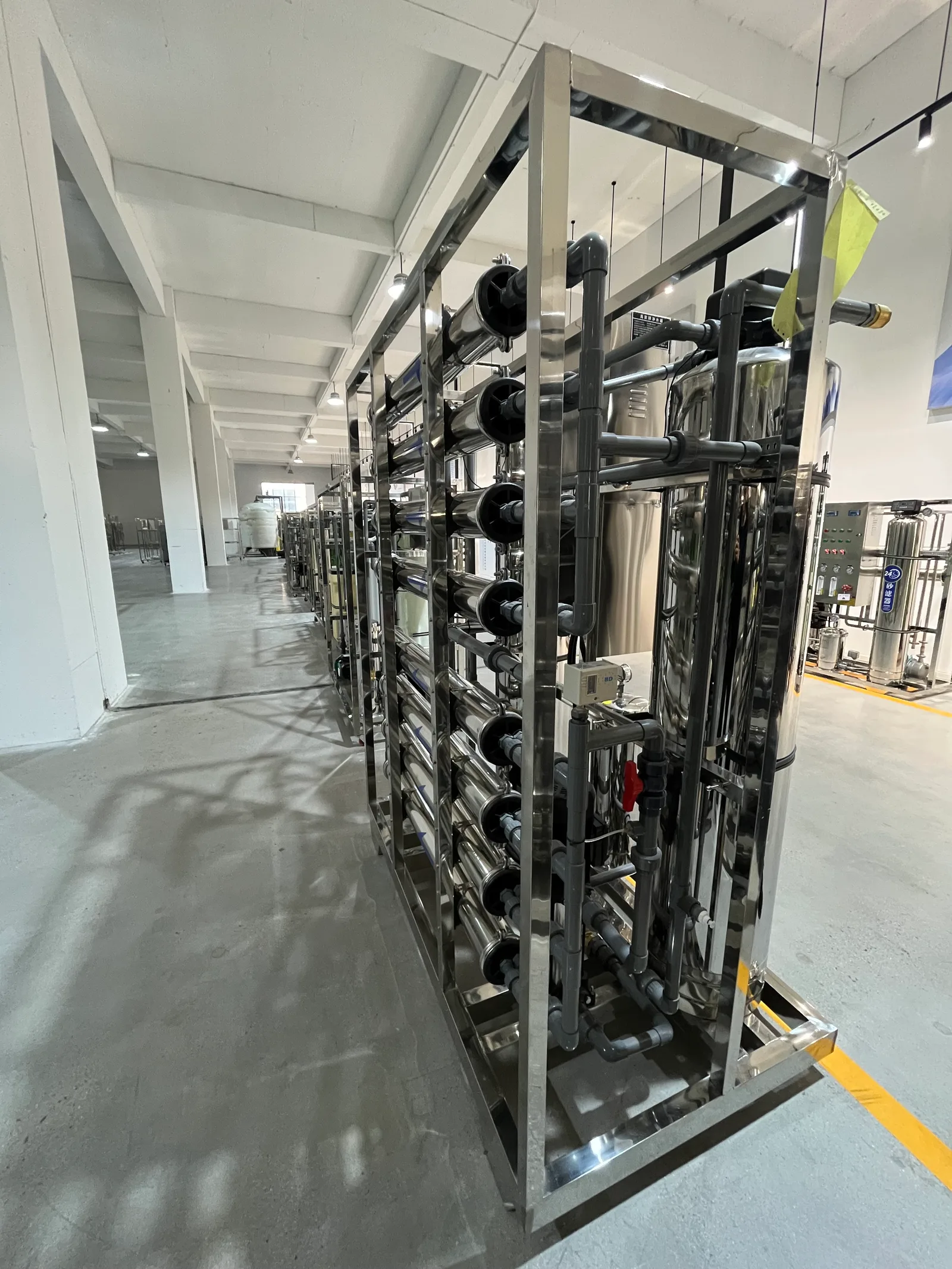

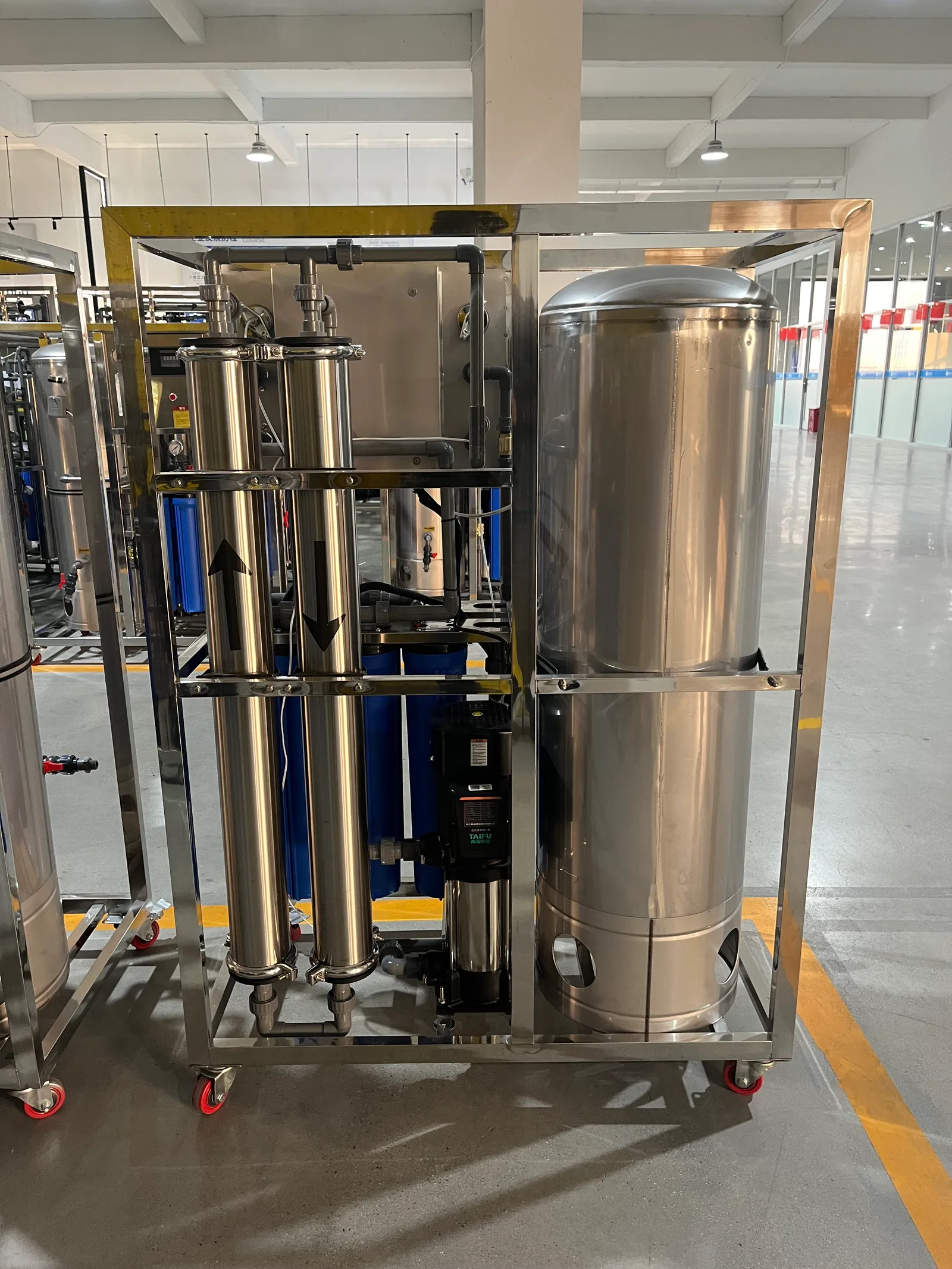

Brackish & Seawater Reverse Osmosis System — product showcase

Product Showcase

Brackish & Seawater Reverse Osmosis System

Product Details

FupengWater is a desalination specialist and a leader in packaged / skid-mounted reverse osmosis systems. We work closely with membrane manufacturers to design, build, test and deliver custom desalination systems. Depending on location (salinity and temperature) and energy costs, we select the most cost-effective solution by pairing the right energy-recovery device and construction material grade of stainless steel.

Because seawater requires additional pressure, our pumping technology is built more robust with larger pumps, and all wetted materials are non-corrosive to resist the extreme corrosivity of seawater.

Key Features

- Skid-mounted, pre-assembled and factory-tested 316L stainless steel construction for corrosion resistance

- Configurable capacity from 5 m³/day up to 1,900 m³/day standard, modular plants to 10,000 m³/day

- High-rejection RO membranes with salt rejection ≥ 99.2% for brackish and seawater feeds

- Optional energy-recovery devices (pressure exchanger or Pelton turbine) cutting energy use by up to 30%

- PLC + HMI control with remote-ready dashboard, alarms and automated start/stop sequences

- Dedicated pretreatment train (sand, carbon, cartridge and antiscalant dosing) matched to feed-water analysis

Factory-Tested Before Shipment

- Hydraulic and conductivity validation against the agreed duty point

- Control logic and alarm testing on every skid before crating

- Export-ready packing and full documentation for global delivery

Applications

Municipalities, armed forces, marine industries, resorts, offshore platforms, yachts, harbors and seaside

tourist resorts.

Typical Applications

This system can be configured around the water source, target quality and operating conditions of projects such as:

MunicipalMarineResortsOffshore Platforms

Prepare a faster quotation

Send the information below with your inquiry so our engineers can recommend the right configuration.

  • Source-water analysis or water type
  • Required flow or daily capacity
  • Target water quality or discharge standard
  • Site conditions, power supply and delivery location

Ready to move forward?

Submit an RFQ with your specs, or chat directly with our engineers on WhatsApp.
